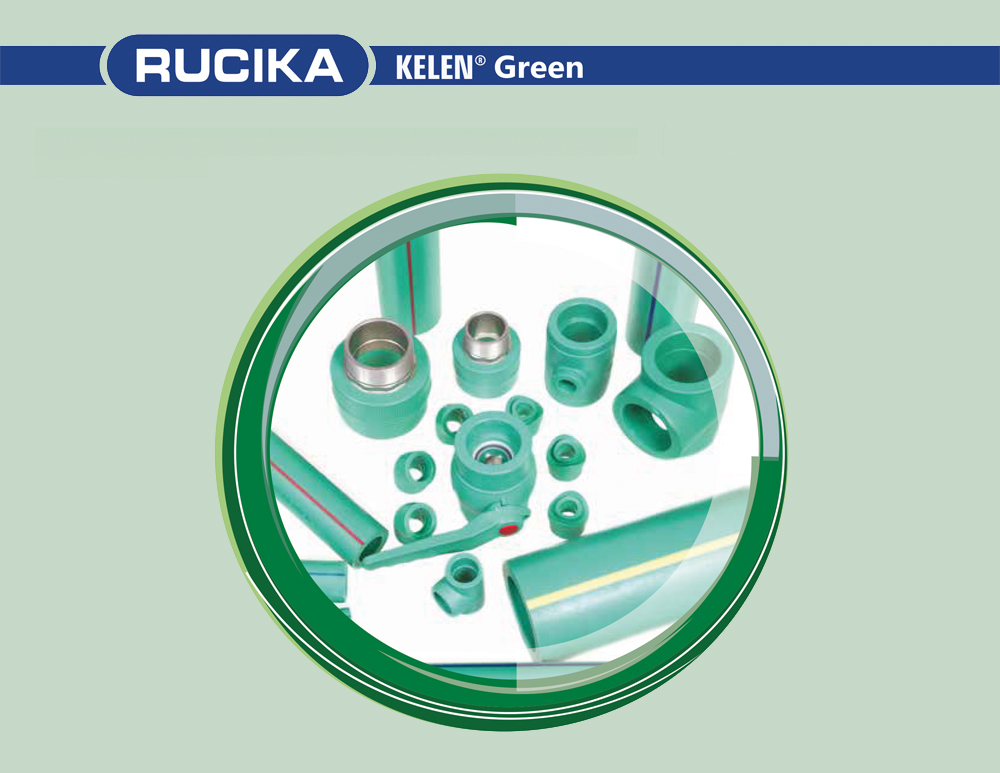

RUCIKA KELEN GREEN is a complete piping system that can used for channels pressurized hot and cold water. The material is made from Random Polypropylene (PP-R) type 3 / PP-R 80. The connection system used is a heat fusion connection system with using a heater. With this connection system, the connection results become compound so that it is guaranteed strength, leak-proof and maintenance free. This product has durability very high

Baca juga: Stages of installing good ceramics and true with MU.

ADVANTAGES AND BENEFITS :

• Hygienic:
  - The RUCIKA KELEN GREEN piping system meets international standards for transportation drinking water, and has been proven not to pose a risk to health (tests have been carried out at Sucofindo).


• Connection System:
  - With a heat fusion connection system that uses a heating device, the connection results are... What is formed is a homogeneous connection or compound so that its strength and resistance are guaranteed leak and maintenance free..


• Thread System:
  - All threaded connections from RUCIKA KELEN GREEN are made from nickel-plated brass OT 58, thus guaranteeing the thread life time from damage due to heat, rust and chemicals as well can be applied to all sanitary systems, including connections to RUCIKA KELOX.


• Light:
  - Random Polypropylene (PP-R) type 3 material has light properties making it easier to carry in terms of transportation and installation.


• Low Thermal Conductivity:
  - This material has low heat propagation properties so it can store more heat for a long time, without having to be coated with a heat retaining casing. PP-R thermal conductivity 0.24 W/mºC


• Slippery Inner Surface (Low Head Losses):
  - The slippery and smooth surface characteristics result in no precipitation forming dirt in the pipe and the head loss that occurs will be smaller than hot water pipes and another traditional cold.


• Resistant to Abrasion:
  - Can flow water at a speed of 7 m / second without abrasion on the pipe walls.


• Resistant to Chemicals:
  - The RUCIKA KELEN GREEN piping system is able to withstand acid and alkaline flows.


• Environmentally friendly:
  - Random Polypropylene (PP-R) type 3 material can be recycled or burned using an incinerator (a machine used to burn remaining waste).

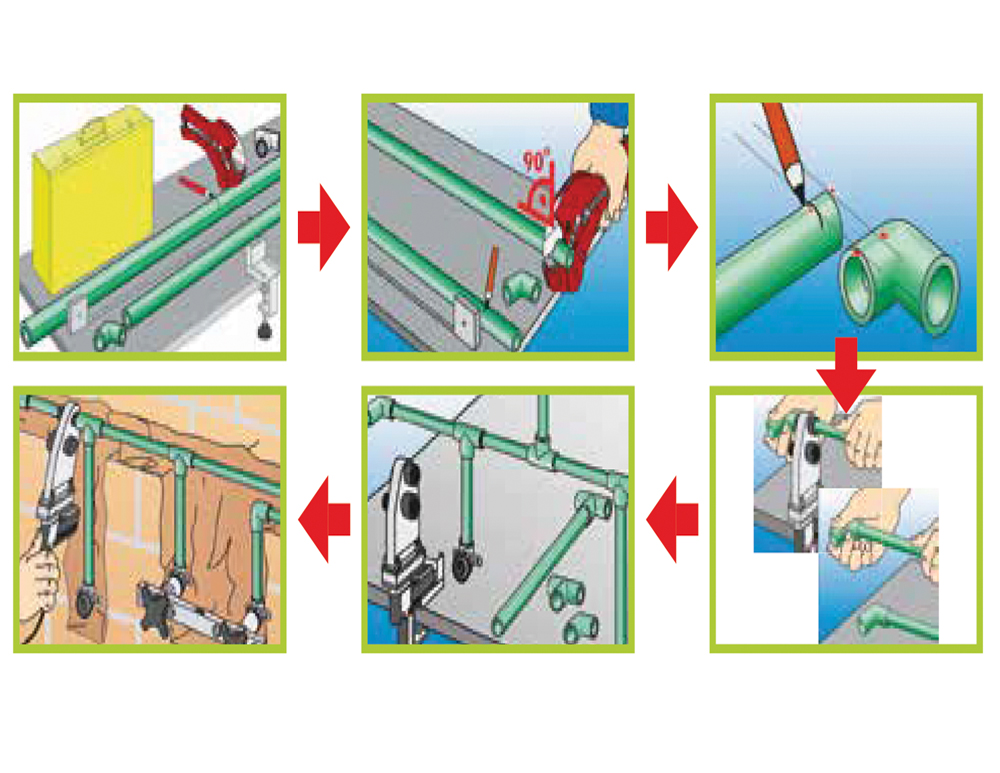

Connection Process :

• Measure the required pipe length and cut the pipe appropriately using a pipe cutter.
• Make sure the pipe surface is clean and free from oil, dust or water. Don't Clean with a plastic chamois cloth because it has the potential to make the pipe damp.
• Measure the depth of the socket and mark the depth on the appropriate pipe. Make sure visible marks when welding.
• The heating time (see table above) starts when the pipe depth is required and The entire socket on the fitting has been pushed into the welding machine.
• Heating time varies according to pipe size (see table above). After When the installation is complete, push the pipe and fitting together slowly and without turning. The result is homogeneous and strong.
• The 4 lines on the pipe function as guides to make the connection straight.
• The position of the fitting can only be adjusted for a few seconds after the pipe and fitting connected.
• Make sure that all joints that must be made in the wall are positioned correctly so that they can be made accessed by the welding machine.
